Camlock Coupling

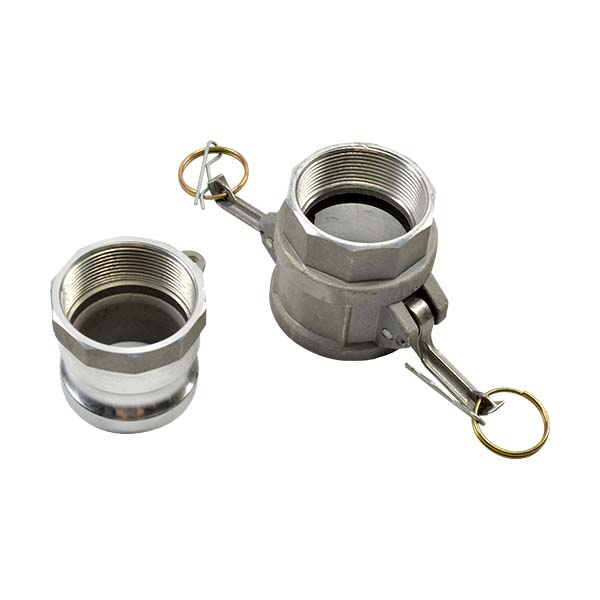

Aluminium Camlock Coupling Type-A
IMPA Code: 351701~12
Aluminium Camlock Coupling Type-A plug (Male Coupler With Female Thread)
1.They are quick, tight, leakproof connections to pipe, tubing, hose or tanks and provide quick liquid and material hose
connections that seal tight and stay tight,
2.Sizes from 1/2” to 8” are available
3.They are made of aluminium alloy for use with liquid ,vapors gases and air-blown dry products
4.Others material brass and stainless steel are also available
5.Suitable foe use with single connections and where changes in connection to a number of tanks or outlets may be required
Technical Data
Nom Size | CODE | |
Inch | mm | |
1/2 | 15 | 351701 |
3/4 | 20 | 351702 |
1 | 25 | 351703 |
1-1/4 | 32 | 351704 |
1-1/2 | 40 | 351705 |
2 | 50 | 351706 |
2-1/2 | 65 | 351707 |
3 | 80 | 351708 |
4 | 100 | 351709 |
5 | 125 | 351710 |
6 | 150 | 351711 |
8 | 200 | 351712 |
