Camlock Coupling
Aluminium Camlock Coupling Type-DC
IMPA Code: 352050~61

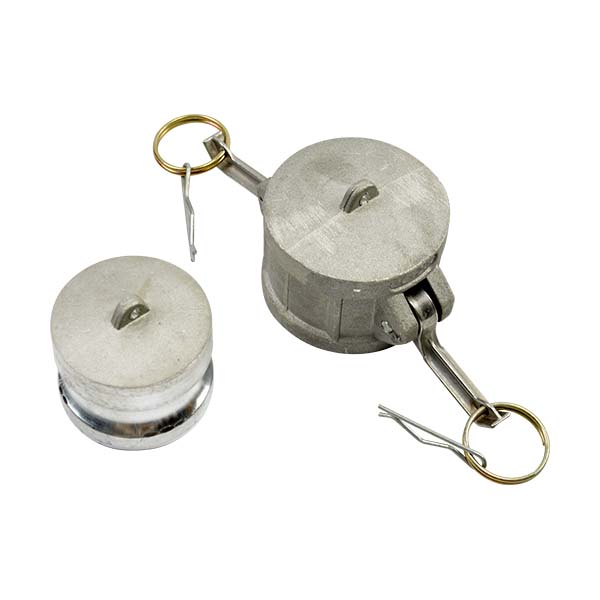

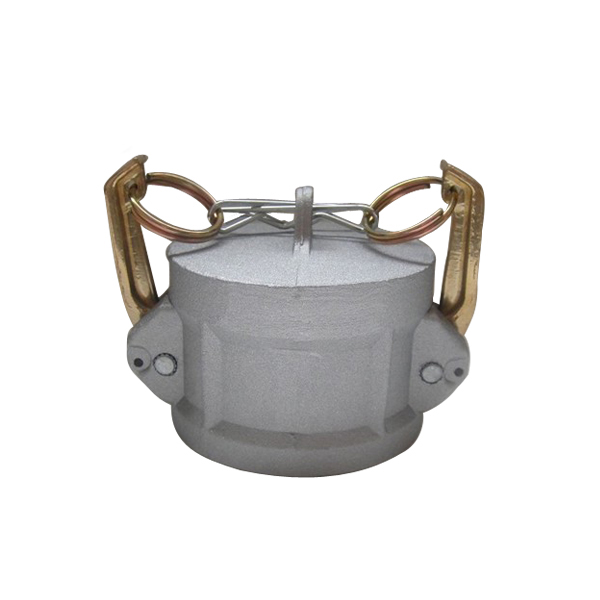

Aluminium Camlock Coupling Type-DC ( Dust Cap)
1.They are quick, tight, leakproof connections to pipe, tubing, hose or tanks and provide quick liquid and material hose
connections that seal tight and stay tight,
2.Sizes from 1/2” to 8” are available
3.They are made of aluminium alloy for use with liquid ,vapors gases and air-blown dry products
4.Others material brass and stainless steel are also available
5.Suitable foe use with single connections and where changes in connection to a number of tanks or outlets may be required
Technical Data
|
Nom Size |
CODE |
|
|
Inch |
mm |
|
|
1/2 |
13 |
352050 |
|
3/4 |
20 |
352051 |
|
1 |
25 |
352052 |
|
1-1/4 |
32 |
352053 |
|
1-1/2 |
40 |
352054 |
|
2 |
50 |
352055 |
|
2-1/2 |
65 |
352056 |
|
3 |
80 |
352057 |
|
4 |
100 |
352058 |
|
5 |
125 |
352059 |
|
6 |
150 |
352060 |
|
8 |
200 |
352061 |
