Brass Camlock Coupling Type-F

IMPA Code: 351765-351776

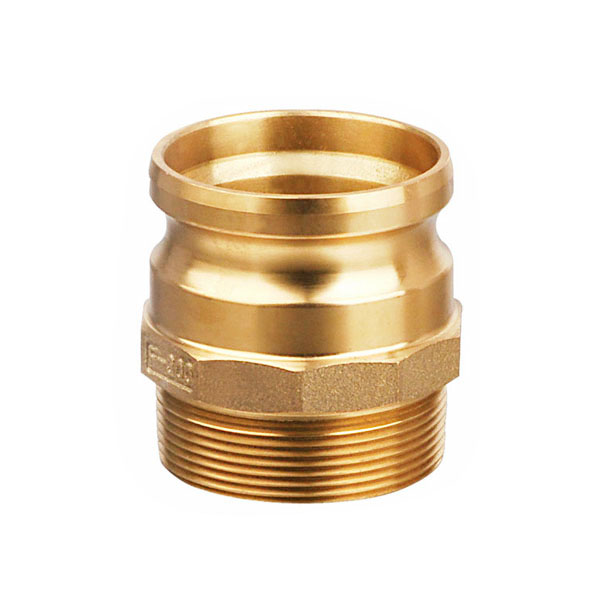

 Brass Camlock Coupling Type-F    Plug( Male Coupler) With Male Thread

1.They are quick, tight, leakproof connections to pipe, tubing, hose or tanks and provide quick liquid and material hose
   connections that seal tight and stay tight,

2.Sizes from 1/2” to 8” are available

3.They are made of brass , others material aluminium and stainless steel are also available

4.Suitable foe use with single connections and where changes in connection to a number of tanks or outlets may be required


Technical Data



Nom Size CODE
Inch mm
1/2 15 351765
3/4 20 351766
1 25 351767
1-1/4 32 351768
1-1/2 40 351769
2 50 351770
2-1/2 65 351771
3 80 351772
4 100 351773
5 125 351774
6 150 351775
8 200 351776
