Glycerine Filled Pressure Gauge

Description

Glycerine Filled Pressure Gauge

1.The internal mechanism for the pointer operation is filled with glycerine to protect the accuracy of
the gauge from mechanical vibration and to extend the working life of the gauge.

2.There are three types of fitting connection,U-Type 、 T-Type S-Type

3.There are three types of casing :rimless type、round rim type、buried type

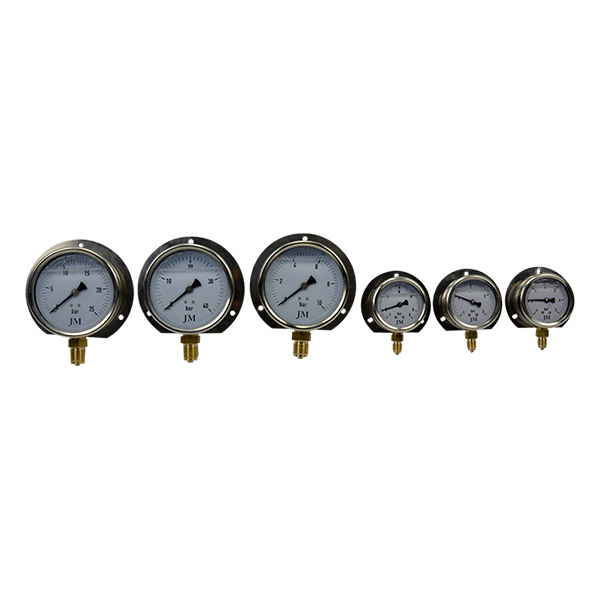

4.The diam size can be 63mm、80mm、 100mm

Technical Data

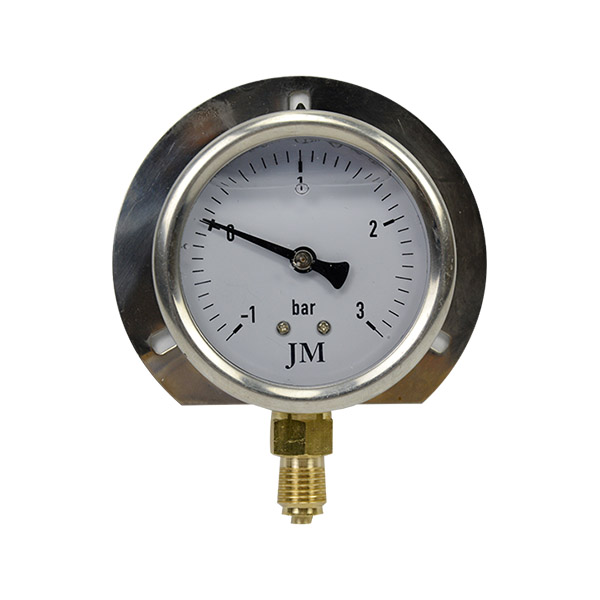

Bottom Connection Direct mounting			Bottom Connection with Back Flange
CODE	mersuring range	Dial size	CODE	mersuring range	Dial size
CODE	(bar)	(mm)	CODE	(bar)	(mm)
653101	-1~1.5	63	653151	-1~1.5	63
653102		80	653152		80
653103		100	653153		100
653104	-1~3	63	653154	-1~3	63
653105		80	653155		80
653106		100	653156		100
653107	-1~5	63	653157	-1~5	63
653108		80	653158		80
653109		100	653159		100
653110	-1~9	63	653160	-1~9	63
653111		80	653161		80
653112		100	653162		100
653113	0~4	63	653163	0~4	63
653114		80	653164		80
653115		100	653165		100
653116	0~6	63	653166	0~6	63
653117		80	653167		80
653118		100	653168		100
653119	0~10	63	653169	0~10	63
653120		80	653170		80
653121		100	653171		100
653122	0~16	63	653172	0~16	63
653123		80	653173		80
653124		100	653174		100
653125	0~25	63	653175	0~25	63
653126		80	653176		80
653127		100	653177		100
653128	0~40	63	653178	0~40	63
653129		80	653179		80
653130		100	653180		100
653131	0~60	63	653181	0~60	63
653132		80	653182		80
653133		100	653183		100
653134	0~100	63	653184	0~100	63
653135		80	653185		80
653136		100	653186		100
653137	0~160	63	653187	0~160	63
653138		80	653188		80
653139		100	653189		100
