Marine Hand Tools
Grinding And Lapping Paste
IMPA Code: 614201~17

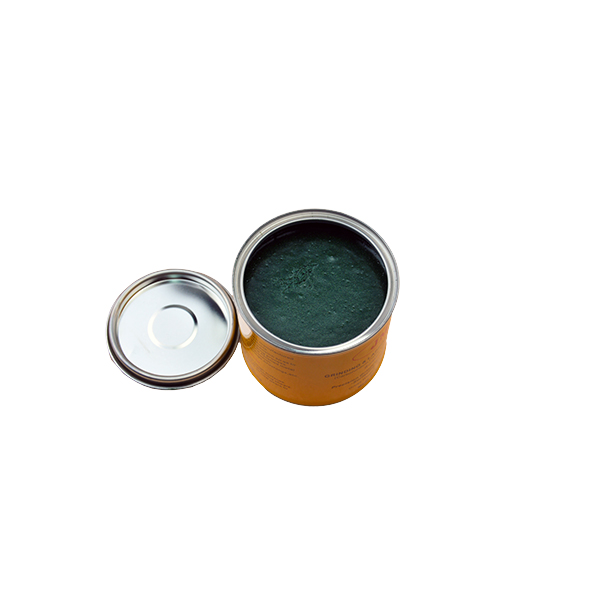

Grinding And Lapping Paste
1.The grinding and lapping paste are made of silicon carbide
2.For precision lapping, fitting, surfacing, polishing and other general use
3.Universally used for grinding valves
4.Supplied in 450grm tin
5.The grit number from 36 to 3000
Technical Data
| CODE | Grade | Grit# | Application |
| 614201 | micro fine | 3000 | precision lapping and high profile polishing to mirror finishing of metal patrs |
| 614202 | 2000 | ||
| 614203 | 1500 | ||
| 614204 | 1200 | ||
| 614205 | 1000 | ||
| 614206 | 800 | ||
| 614207 | very fine | 600 | fine surface lapping, fine polishing for protection seating of valves, bearing and matting componets |
| 614208 | 500 | ||
| 614191 | 400 | ||
| 614209 | fine | 320 | surface finishing e.g.valve seats, seats, bearings, bushings , etc |
| 614210 | 280 | ||
| 614192 | medium fine | 240 | surface lapping/reseating exhaust and intake valves |
| 614211 | 220 | ||
| 614212 | medium | 180 | cleaning of corroded bolt thread & sharpening shears, etc |
| 614213 | 150 | ||
| 614193 | coarse | 120 | spot removal of uneven surface e.g.conditioning of new gears for smooth ruining |
| 614214 | 100 | ||
| 614215 | 80 | ||
| 614194 | 30 | ||
| 614216 | very coarse | 50 | fast removal of high spots and very rough metal surfacce |
| 614195 | 40 | ||
| 614217 | 36 |
