Pneumatic Vacuum Cleaner (Blobac Cleaner) V-500 (590722) - Blobac Cleaner

Pneumatic Vacuum Cleaner (Blobac Cleaner) V-500

IMPA Code: 590722

Description

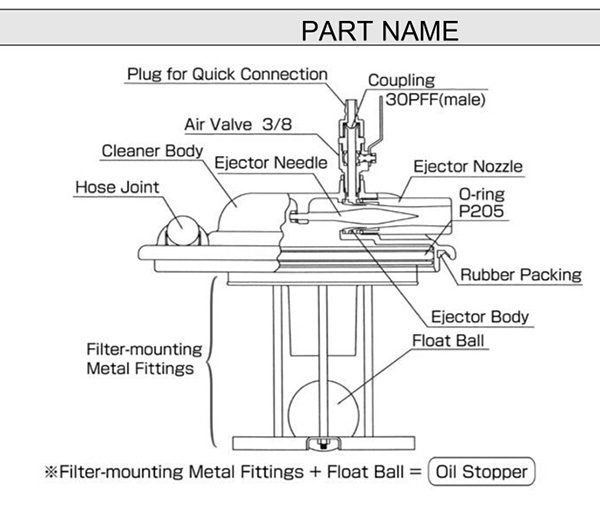

Schematic

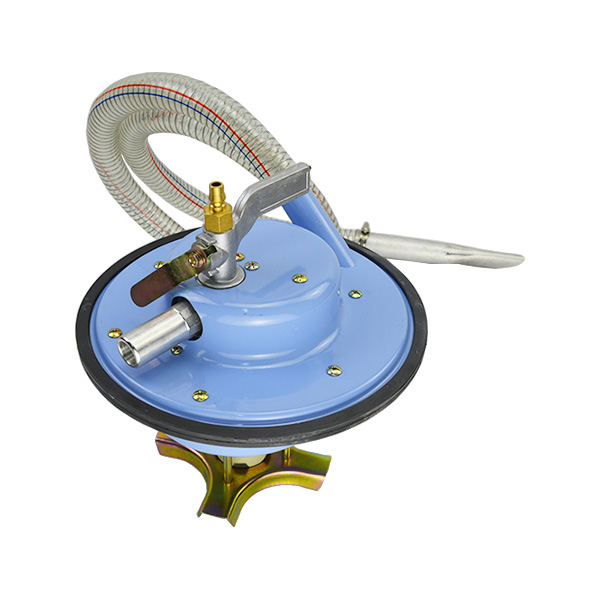

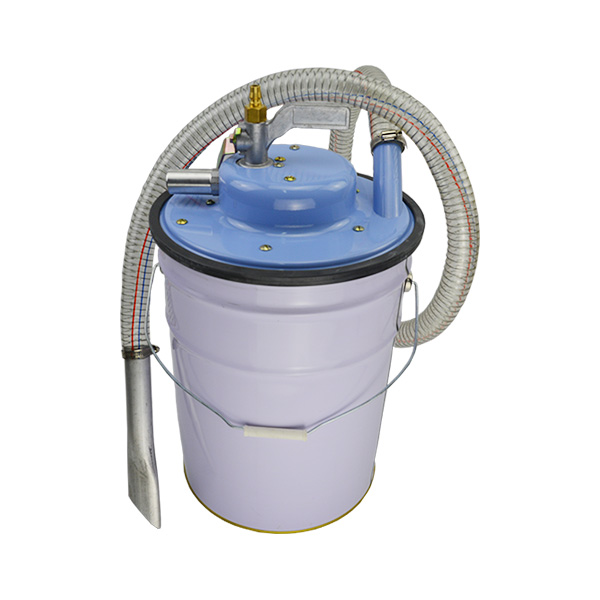

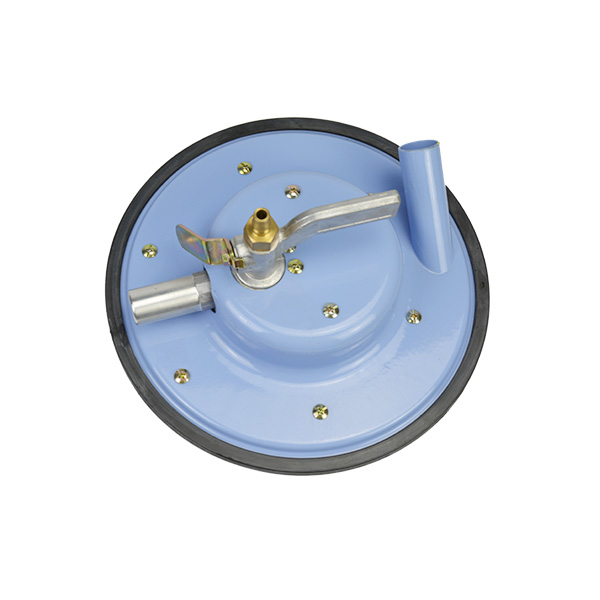

Pneumatic Vacuum Cleaner V-500

1.Compact and lightweight industrial vacuum cleaner

2.Works on compressed air

3.Capable of cleaning off water, oil, and bottom sludge as well as dust and metal chippings

4.Made of a unique design permitting the use of an ordinary pail can with an outside diameter of 300mm to collect the dust and waste

Technical Data

Code	Model	Recommended air supply pressure	Power	Hose size	Suction nozzle	Air consumption at 5 kgf/cm2	Vacuum (in water column) at 5 kgf/cm2	Suction capacity at 5 kgf/cm2
590722	V-500	5kg/cm 2	5 HP	32mm diameter x 2 m (oil resisting)	32mm diameter w 14mm 2 types available	400 ltr/min	3000 mm	2m³
