Angle Type Sika Industrial Thermometer

Description

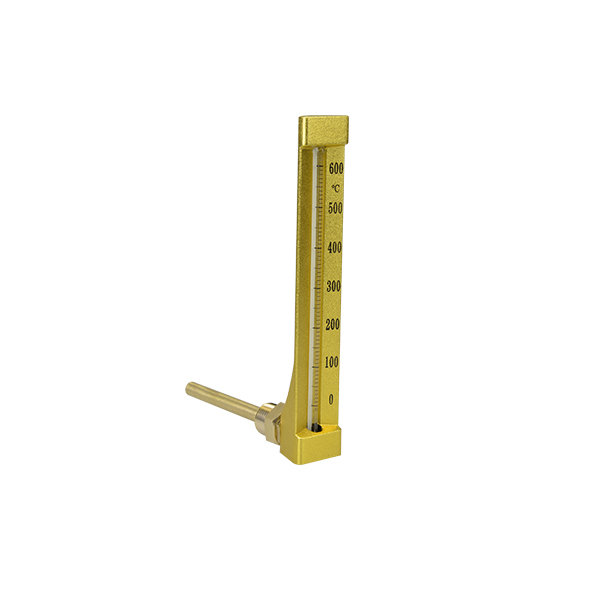

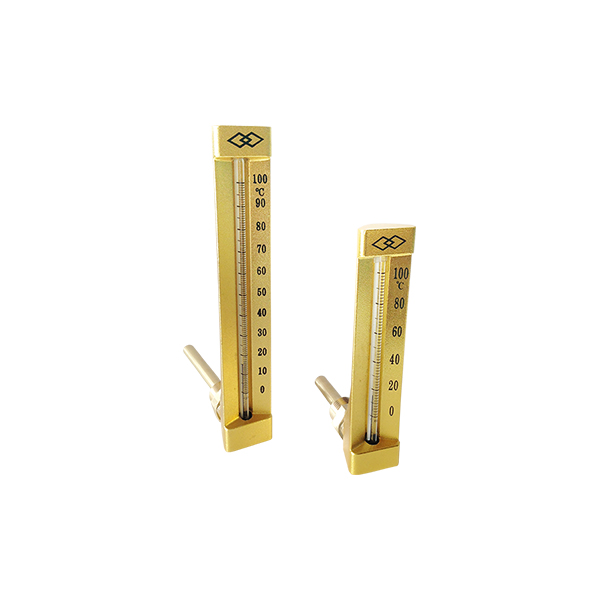

Angle Type Sika Industrial Thermometer

1.The thermometer casing are finished in anodized gold colour.

2.Threaded sockets with a solid hexagonal nut

3.Adjustable to any desired viewing position and locked by brass nut,

spanner size 22mm

4.Thermometers with a measuring range from -60 ℃ to +250℃, have a blue fluid indicator and thermometer
with range above250℃,work with mercury indicators

5.A wide variety of SIKA thermometers are available

Technical Data

Type ℃	Casing Size (L X W)mm	Thread	immersion (stem) tube diam.mm

272B	200 X 36	PT(R) 1/2" ( or3/4")	10
292B	150 X 36
175B	110 X 30

Thread Size PT(R) 1/2"

CODE	Range (℃)	Immersion Length mm	CODE	Range (℃)	Immersion Length mm
Type -272B			Type -292B
652025	-60~ +40	63	652065	-60~ +40	63
652026		100	652066		100
652027		160	652067		160
652001	-30~ +50	63	652041	-30~ +50	63
652002		100	652042		100
652003		160	652043		160
652028	0~ 60	63	652068	0~ 60	63
652029		100	652069		100
652030		160	652070		160
652004	0~ 100	63	652044	0~ 100	63
652005		100	652045		100
652006		160	652046		160
652031	0~120	63	652071	0~120	63
652032		100	652072		100
652033		160	652073		160
652007	0~ 160	63	652047	0~ 160	63
652008		100	652048		100
652009		160	652049		160
652010	0~ 200	63	652050	0~ 200	63
652011		100	652051		100
652012		160	652052		160
652034	0~ 250	63	652074	0~ 250	63
652035		100	652075		100
652036		160	652076		160
652013	0~ 300	63	652053	0~ 300	63
652014		100	652054		100
652015		160	652055		160
652016	0~ 400	63	652056	0~ 400	63
652017		100	652057		100
652018		160	652058		160
652019	0~ 500	63	652059	0~ 500	63
652020		100	652060		100
652021		160	652061		160
652022	0~ 600	63	652062	0~ 600	63
652023		100	652063		100
652024		160	652064		160

CODE	Range (℃)	Immersion Length mm	CODE	Range (℃)	Immersion Length mm
Type -175B
652131	-30~ +50	30	652141	0~ 120	30
652132		40	652142		40
652133		63	652143		63
652134		100	652144		100
652135		160	652145		160
652136	0~ 60	30	652146	0~ 160	30
652137		40	652147		40
652138		63	652148		63
652139		100	652149		100
652140		160	652150		160
652081	0~ 100	30	652086	0~ 200	30
652082		40	652087		40
652083		63	652088		63
652084		100	652089		100
652085		160	652090		160
