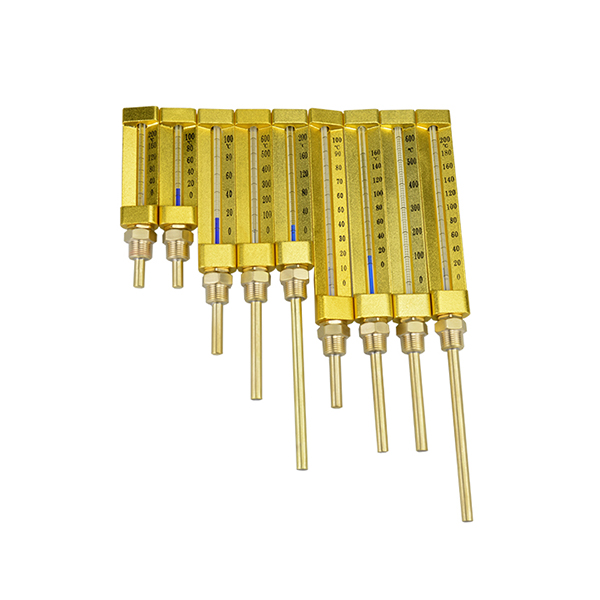

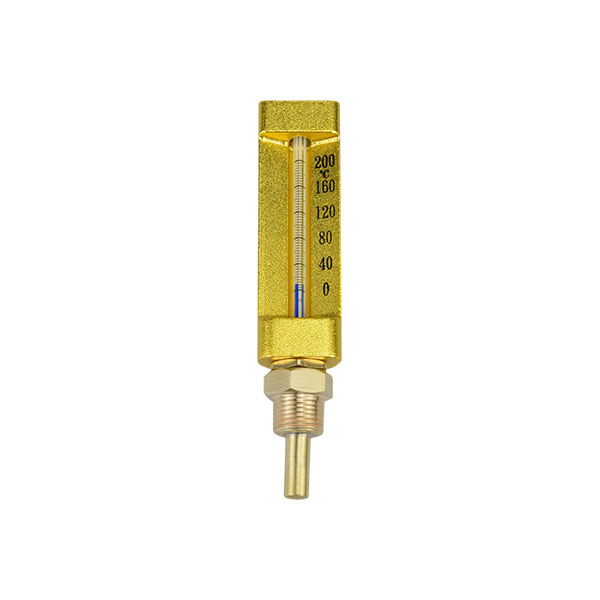

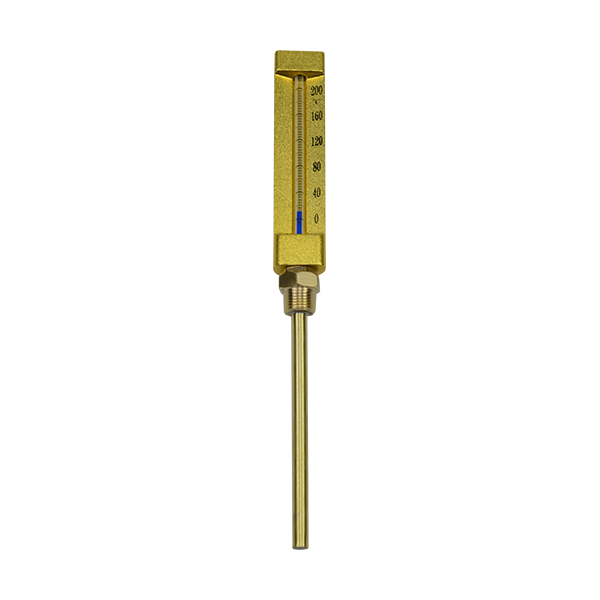

Straight Type Sika Industrial Thermometer

Description

Straight Type Sika Industrial Thermometer

1.The thermometer casing are finished in anodized gold colour.

2.Threaded sockets with a solid hexagonal nut

3.Adjustable to any desired viewing position and locked by brass nut,

spanner size 22mm

4.Thermometers with a measuring range from -60 ℃ to +250℃, have a blue fluid indicator and thermometer with range above250℃,
work with mercury indicators

5.A wide variety of SIKA thermometers are available

Technical Data

Type ℃	Casing Size (L X W)mm	Thread	immersion (stem) tube diam.mm

271B	200 X 36	PT(R) 1/2" ( or3/4")	10
291B	150 X 36
174B	110 X 30

Thread Size PT(R) 1/2"

CODE	Range (℃)	Immersion Length mm	CODE	Range (℃)	Immersion Length mm
Type -271B			Type -291B
651925	-60~ +40	63	651965	-60~ +40	63
651926		100	651966		100
651927		160	651967		160
651901	-30~ +50	63	651941	-30~ +50	63
651902		100	651942		100
651903		160	651943		160
651928	0~ 60	63	651968	0~ 60	63
651929		100	651969		100
651930		160	651970		160
651904	0~ 100	63	651944	0~ 100	63
651905		100	651945		100
651906		160	651946		160
651931	0~120	63	651971	0~120	63
651932		100	651972		100
651933		160	651973		160
651907	0~ 160	63	651947	0~ 160	63
651908		100	651948		100
651909		160	651949		160
651910	0~ 200	63	651950	0~ 200	63
651911		100	651951		100
651912		160	651952		160
651934	0~ 250	63	651974	0~ 250	63
651935		100	651975		100
651936		160	651976		160
651913	0~ 300	63	651953	0~ 300	63
651914		100	651954		100
651915		160	651955		160
651916	0~ 400	63	651956	0~ 400	63
651917		100	651957		100
651918		160	651958		160
651919	0~ 500	63	651959	0~ 500	63
651920		100	651960		100
651921		160	651961		160
651922	0~ 600	63	651962	0~ 600	63
651923		100	651963		100
651924		160	651964		160

CODE	Range (℃)	Immersion Length mm	CODE	Range (℃)	Immersion Length mm
Type -174B
652101	-30~ +50	30	652111	0~ 120	30
652102		40	652112		40
652103		63	652113		63
652104		100	652114		100
652105		160	652115		160
652106	0~ 60	30	652116	0~ 160	30
652107		40	652117		40
652108		63	652118		63
652109		100	652119		100
652110		160	652120		160
651981	0~ 100	30	651986	0~ 200	30
651982		40	651987		40
651983		63	651988		63
651984		100	651989		100
651985		160	651990		160
