Portable Electric Ventilation Fan
Electric Portable Ventilation Fan
IMPA Code: 591401~09

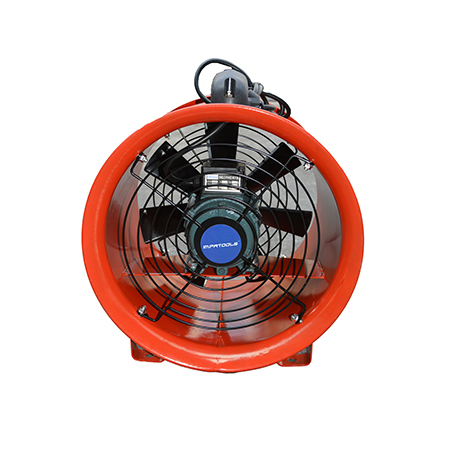

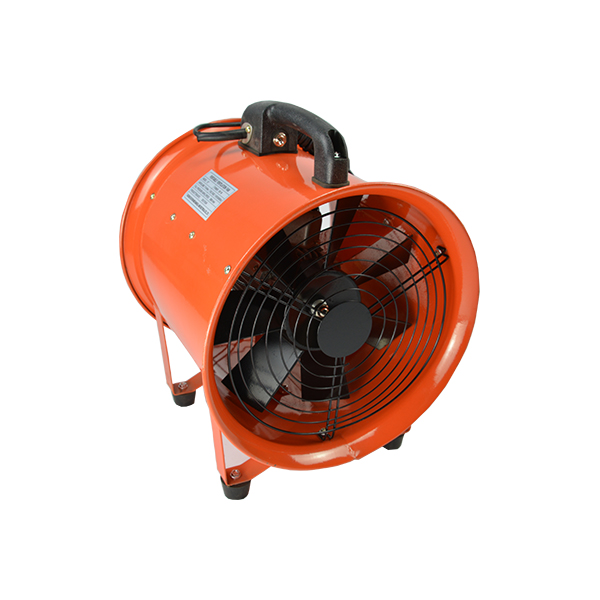

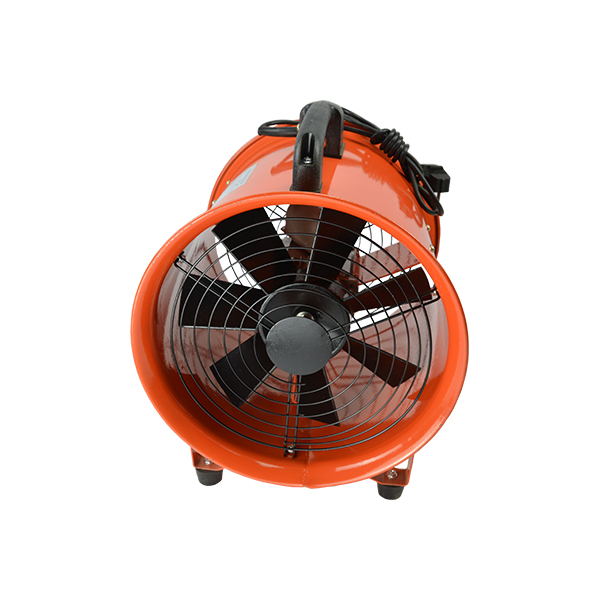

Electric Portable Ventilation Fan
1.Highly efficient and portable
2.Used to ventilate hot air and harmful gases from a tank or work area,and supply fresh air and oxygen.
3. the ideal bell-mouth type casing is highly efficient,creates little noise and is easy to install in an air duct

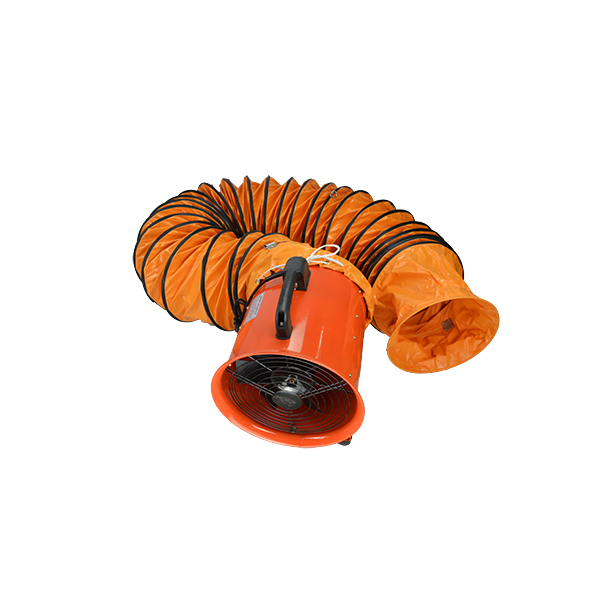

4..Related air ducts are sold separately.
Technical Data
| Specifications | ||||
| casing diam | 200φ | 300φ | 400φ | 500φ |
| Electric Source | 100V 1P | 100V 1P | 200V 3P | 200V 3P |
| 200V 1P | 200V 1P | |||
| Air volume | 20m³/min | 70m³/min | 110m³/min | 190m³/min |
| Pressure | 25mm Aq |
30mm Aq |
50mm Aq |
70mm Aq |
| R.P.M. | 3000 3,600 |
3000 3,600 |
3000 3,600 |
3000 3,600 |
| Output | 155W | 0.55KW | 1.5KW | 3.7KW |
| Weight | 9kgs | 18kgs | 35kgs | 64kgs |
| AC 110v ±10% | AC 220v±10% | ||||
| CODE | Case diam | Phase | CODE | Case dia | Phase |
| 591402 | 200mm | single | 591406 | 200mm | single |
| 591403 | 300mm | single | 591407 | 280mm | single |
| 591408 | 400mm | triple | |||
| 591409 | 500mm | triple | |||
