Portable Electric Ventilation Fan

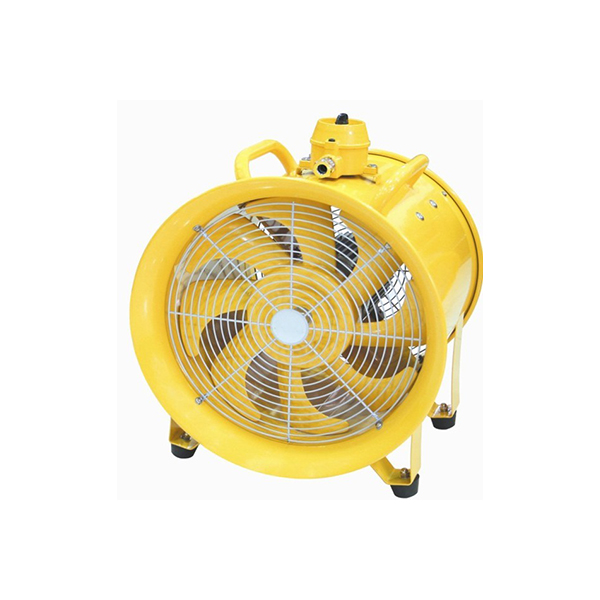

Explosion Proof Portable Electric ventilation Fan
IMPA Code: 591416~19
Explosion Proof Portable Electric ventilation Fan
1.Lightweight and robust , non-sparking type electric driven fan
2.Made of aluminum alloy.
3..Equipped with an explosion proof switch and 1.8 meters of cabtyre cable
4..An explosion proof flexible duct is also available
5..Handle is on top of the explosion proof portable ventilation fan.,at the end
there' are four legs with the shockpoof plastic foot.
Technical Data
| CODE | 591416 | 591417 | 591418 | 591419 |
| Casing Diam | 200 Ø | 300Ø | ||
| voltage | AC-110V | AC-220V | AC-110V | AC-220V |
| phase | single | single | ||
| P.R.M. | 3,000/3,600 | 3,000/3,600 | ||
| Air Volume | 20M3/min | 70M3/min | ||
| Pressure | 25mm/Aq | 30mm/Aq | ||
| Weight | 14.5kgs | 25kgs | ||
